[★★★★★] Evolutionary Structural Optimization of A Cantilever Beam
In this example, the optimization of a loaded panel is performed by using the BESO method. The model can be downloaded here.
Design Domain
The design domain has a dimension of \(100\times40\) with left side fully fixed. At the center of the right side, a
point load is applied. The panel is discretized with \(4000\) CP4 elements.
The node and elements are defined in files node.supan and element.supan. They can be loaded.
The boundary condition is applied to a group that selects all nodes on \(x=0\).
The Optimization Step
To perform structural optimization, a Optimization step needs to be defined.
| Text Only | |
|---|---|
To define a proper rule to update the model by adding/deleting elements, one can use
the StrainEnergyEvolution criterion. The following command
defines a strain energy based evolution rule with an increment step of \(2\%\) to reach the final design level \(50\%\),
that is to remove \(50\%\) elements.
| Text Only | |
|---|---|

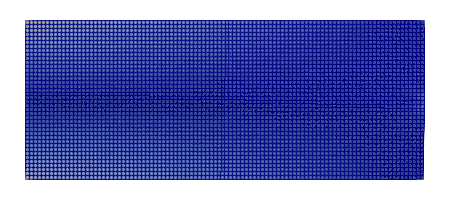

Result
